AUXILIARY EQUIPMENTS

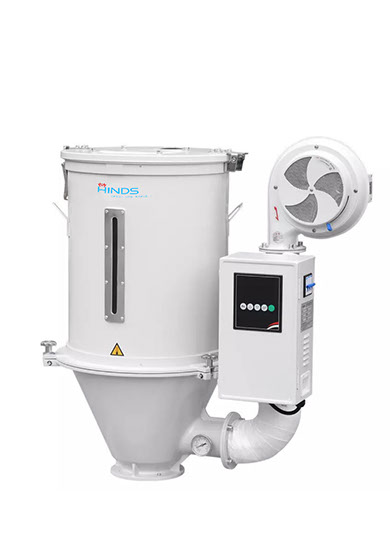

Hopper Dryer
The main controllers and material hopper receivers are designed independently to ensure safety and convenience. This setup allows for connecting two or more hopper receivers, enabling single or multiple material conveyance. It significantly increases material conveying capacity, reaching up to 700 kg/hr, with a maximum conveying distance of 10 meters. All models are suitable for transporting materials over long distances and are easy to operate, meeting various customer needs. Key Features: All material contact parts are constructed from stainless steel to prevent contamination. The aluminum-cast hopper barrel offers a smooth surface and maintains temperature effectively. A noise-reducing blower with an anti-dust design ensures materials remain uncontaminated. The hopper barrel includes transparent windows to monitor material levels easily. A hot air inlet elbow prevents material from piling up near the heater’s base, reducing burn risks. An air diffuser ensures even hot air distribution for better drying efficiency. The hopper barrel can be detached from the base for easy cleaning. Built-in safety mechanisms protect against overheating and overloads. Equipped with a flap and convenient suction installation for ease of us

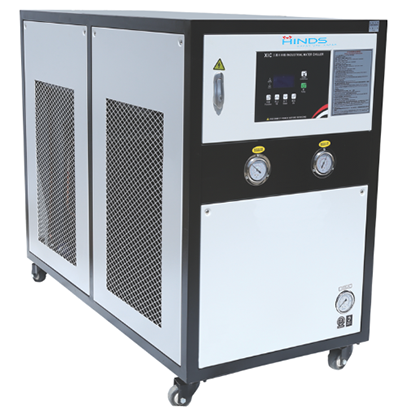

Industrial Chiller
Air chillers feature fin-type condensers that operate without the need for cooling water. They offer efficient heat transfer and excellent heat dissipation. These units support a cooling temperature range from 5°C to 35°C, with some models capable of reaching as low as 3°C (±1°C accuracy). Compressor power options range from 3HP to 30HP, providing flexible cooling capacity. Key Features: Equipped with high-quality imported compressors and pumps for quiet operation, energy efficiency, and long service life. Integrated microcomputer control allows for precise temperature management within a 5°C to 35°C range. Advanced condenser and heat-dispersion design ensures optimal heat exchange performance. Built-in safety systems include overload protection, high/low-pressure switches, and an electronic timer delay that alerts users in case of malfunctions. Constructed with a 304 stainless steel insulated water tank for durability, easy cleaning, and low maintenance. Comprehensive safety protections include reverse phase detection, short-phase protection, and anti-freeze safeguards.

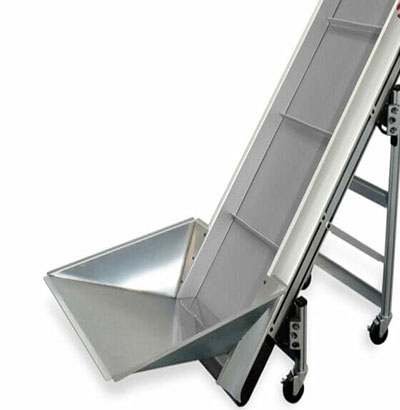

Conveyor
Conveyor Systems Built for Efficiency and Performance At Hinds Plastic Machines Pvt. Ltd., we design and deliver high-quality, customizable conveyor systems to streamline material handling and improve production flow across diverse industrial environments. Built with excellence as a foundation, our conveyors are engineered to reduce operational costs while maximizing throughput and reliability. From moving molded parts through manufacturing stages to supporting robotic automation, our conveyors are adaptable, durable, and designed to integrate seamlessly into your process. Key Features: High strength aluminum alloy material manufacturing, lightweight, compact structure, and elegant appearance. High quality rubber work platform for more effective protection of product appearance. The height of the workbench can be freely adjusted, making it easy to assemble and suitable for various occasions. It can be connected to external signals, coordinated with automated machinery for continuous operation or controlled operation. We can customize various sizes according to customers' special needs.

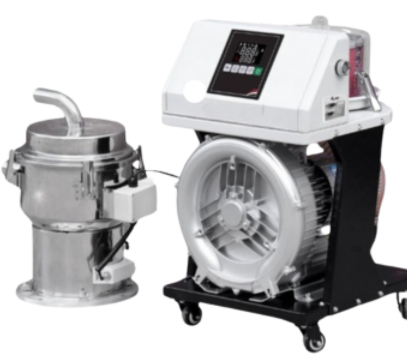

Hopper Loader
Our hopper loaders are engineered with separate main controllers and material receivers to ensure safety and user convenience. Designed to support dual hopper configurations, they efficiently handle multi-material conveying with a capacity of up to 700 kg/hr. Supporting a conveying distance of up to 10 meters, they are an ideal solution for long-distance material transfer with smooth and reliable operation. Key Features: Tailored for long-distance material conveying with customer-specific adaptability. Easy-to-use controller with touch interface and microprocessor for precise control and clear status indication. Multiple alarm indicators for enhanced monitoring. Flexible hopper receiver options to meet a wide range of application needs. Audio alarms notify of material shortages. Dustproof design enhances system durability. Independent filter for quick and hygienic cleaning. Optional cyclone dust separator to improve efficiency and minimize maintenance. Optional proportional valve for blending virgin and regrind materials, including instant recycled material handling.
Silent Granulator
Our Silent Granulators feature a fully enclosed design that keeps external noise levels below 80dB, significantly reducing noise and dust pollution. The advanced internal thermal system directs motor-generated heat outside the enclosure, enhancing the motor’s longevity. Built with safety in mind, they come with a phase sequence controller to prevent issues caused by motor reversal. A user-friendly stainless steel feeding port and handle switch ensure smooth and easy operation. Additionally, stainless steel material trucks are simple to clean and ideal for use in recycling environments. Key Features: Enclosed silent design reduces operational noise and prevents dust dispersion. Sealed chamber construction with double-layer insulation improves noise and heat management. Efficient thermal system ensures optimal motor cooling and performance. Integrated safety system and phase sequence controller offer secure, reliable operation. Ergonomically designed stainless steel feeding port and handle for ease of use. Durable stainless steel material trucks that are easy to clean and compatible with recycling centers.

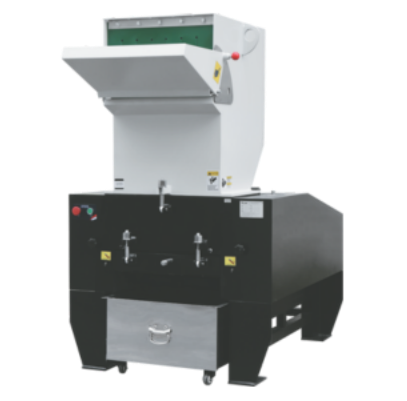

Strong Granulator
Our Strong Granulators are expertly engineered for processing rigid plastics and tough materials with exceptional efficiency. Designed with three versatile blade types—flake, flat, and claw—they deliver powerful cutting and scattering action to reduce blade wear and enhance performance. These granulators are particularly effective for dense, thick materials. To ensure safe operation, they come equipped with multiple protective safety features. Key Features: Designed for processing large and varied materials, including hard plastic and defect parts for recycling use. Equipped with a high-efficiency motor featuring overload and interlock protection for enhanced safety. High-quality stainless steel blades ensure clean and consistent granulation. Available in customizable sizes—standard blade size is 10HP with 8mm, and 15HP with 10mm, adjustable to customer needs. Operates at high efficiency with minimal power consumption, aided by a double-silencer for quiet operation. Includes a feed port screen to block unwanted materials, reducing contamination. Quick-release design allows easy access to feeder, cutter, and screener sections, simplifying maintenance and cleaning.

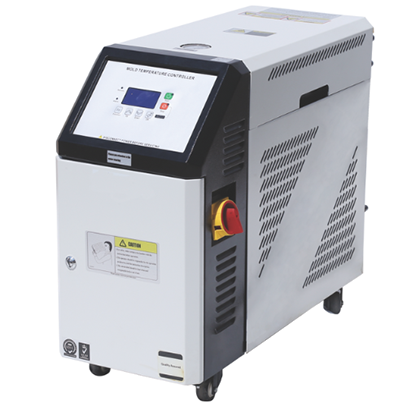

Oil Type Mold Temperature Controller
Oil Type Mold Temperature Controller use oil as heating media to realize heat exchange by indirect cooling. Oil type has its superiorities with wide temperature controlled range and excellent heat stability. Standard heating temperature can reach at 200°C while high temperature type can reach 300°C. Key Features: Electronic control panel and machine body are isolated to acquire good effects on heat insulation in order to extend the service life of electrical components. PID multi-stage temperature control system can save power up to 35%, thanks to control temperature. accurately & reasonably. Perfect safety protection and error indication display which are easy to maintain and repaired,even without professionals can do it, Imported hi-class parts with long service life. Rapid heating and cool down speeds lead temperature to be kept precisely and stably with accuracy up to +0.1 Unique heating design are suitable to different temperature control application with excellent &distinct power saving. 304 stainless steel integrated pipelines with less pipe resistance and even heating for long service life. Automatic air-exhausting function after startup.
Water Type Mold Temperature Controller
These controllers utilize water as a heating medium to facilitate efficient heat exchange through direct cooling. Ideal for maintaining mold temperatures between 120°C and 180°C, the water-based system offers excellent heat transmission with lower environmental impact and operating cost. It's a reliable, eco-friendly solution for temperature control in molding operations. Key Features: Advanced P.I.D. multi-stage control system boosts power efficiency by up to 35% while delivering precise and stable temperature regulation. Safety features include clear error displays and user-friendly indicators that make maintenance simple—even for non-specialists. Equipped with high-quality imported components to ensure a long operational life. Fast heating and cooling cycles provide accurate temperature adjustments with a high level of precision (±0.1°C). Versatile design supports various temperature control needs while optimizing energy use. Durable 304 stainless steel piping ensures even heating with minimal resistance and enhanced durability. Comes with an automatic air exhaust function to streamline startup.

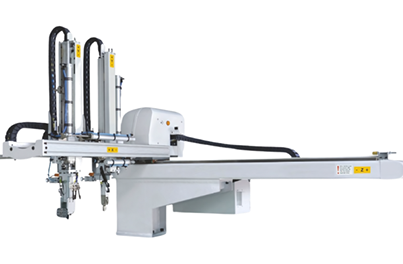

3-Axis Robotic Arm A three-axis servo robotic arm is an automated equipment used for injection molding operations. It is driven by three servo motors, which control the movement, rotation, and gripping actions of the arm to improve production efficiency and accuracy. It is widely used in various fields such as the automotive industry, electronics industry, household appliances, and daily necessities. Key Features: Frame type three-axis single arm double section robotic arm. All axes are driven by full AC servo motors. Heavy duty steel beam structure, safe and stable. Choose heavy-duty linear guides and sliders. Single arm maximum load 5~10KG (including fixture). 90° lateral posture.
